Stationary hydrogen storage

Vítkovice Cylinders offers innovative high-pressure storage systems for hydrogen gas, ensuring safe and efficient solutions for industrial applications, stationary gas storages, and hydrogen mobility. Our Stationary bundles – PED are designed to meet the highest standards, providing reliable high-pressure stationary gas storage for diverse needs.

Choose the required pressure range

0 - 350 bar

Bundle 8 × 80 L

  • Water volume: 640 L

  • Working pressure: 100 bar

  • Gas type and quantity: Hydrogen, 5.5 kg

  • Assembly dimensions: 2,100 × 405 × 2,290 mm

  • Certification: in compliance with 2014/68/EU (PED)

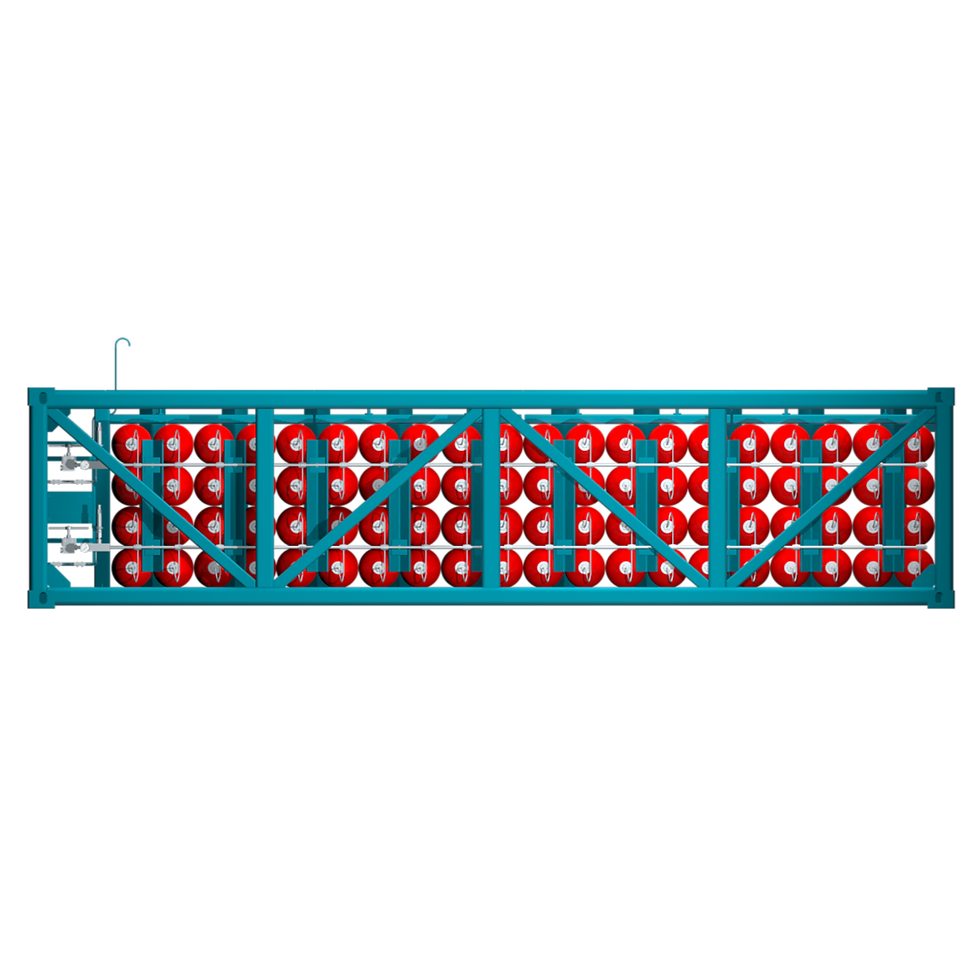

Bundle 95 × 227 L

  • Water volume: 21,565 L

  • Working pressure: 100 bar

  • Gas type and quantity: Hydrogen, 182 kg

  • Assembly dimensions: 2,900 × 6,060 × 2,440 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 16 × 150 L

  • Water volume: 2,400 L

  • Working pressure: 200 bar

  • Gas type and quantity: Hydrogen, 38 kg

  • Assembly dimensions: 2,150 × 1,645 × 1,625 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 24 × 220 L

  • Water volume: 5,280 L

  • Working pressure: 200 bar

  • Gas type and quantity: Hydrogen, 85 kg

  • Assembly dimensions: 2,750 × 1,775 × 2,110 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 33 × 220 L

  • Water volume: 7,260 L

  • Working pressure: 200 bar

  • Gas type and quantity: Hydrogen, 115 kg

  • Assembly dimensions: 2,515 × 2,750 × 2,250 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 58 × 165 L

  • Water volume: 9,570 L

  • Working pressure: 250 bar

  • Gas type and quantity: Hydrogen, 183 kg

  • Assembly dimensions: 1,590 × 5,712 × 2,438 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 25 × 150 L

  • Water volume: 3,750 L

  • Working pressure: 330 bar

  • Gas type and quantity: Hydrogen, 91 kg

  • Assembly dimensions: 2,250 × 1,990 × 2,390 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 30 × 150 L

  • Water volume: 4,500 L

  • Working pressure: 300 bar

  • Gas type and quantity: Hydrogen, 101 kg

  • Assembly dimensions: 2,710 × 2,185 × 1,645 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 58 × 163 L

  • Water volume: 9,454 L

  • Working pressure: 300 bar

  • Gas type and quantity: Hydrogen, 210 kg

  • Assembly dimensions: 1,590 × 5,712 × 2,438 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 109 × 163 L

  • Water volume: 17,767 L

  • Working pressure: 300 bar

  • Gas type and quantity: Hydrogen, 397 kg

  • Assembly dimensions: 2,520 × 6,060 × 2,440 mm

  • Certification: in compliance with 2014/68/EU (PED)

355 - 555 bar

Bundle 3 × 50 L

  • Water volume: 150 L

  • Working pressure: 500 bar

  • Gas type and quantity: Hydrogen, 5 kg

  • Assembly dimensions: 2,220 × 860 × 615 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 6 × 70 L

  • Water volume: 420 L

  • Working pressure: 550 bar

  • Gas type and quantity: Hydrogen, 15 kg

  • Assembly dimensions: 2,470 × 985 × 905 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 8 × 70 L

  • Water volume: 560 L

  • Working pressure: 550 bar

  • Gas type and quantity: Hydrogen, 20 kg

  • Assembly dimensions: 2,470 × 1,260 × 905 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 12 × 50 L

  • Water volume: 600 L

  • Working pressure: 500 bar

  • Gas type and quantity: Hydrogen, 20 kg

  • Assembly dimensions: 2,220 × 1,110 × 1,065 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 16 × 50 L

  • Water volume: 800 L

  • Working pressure: 500 bar

  • Gas type and quantity: Hydrogen, 27 kg

  • Assembly dimensions: 2,220 × 1,110 × 1,290 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 30 × 50 L

  • Water volume: 1,500 L

  • Working pressure: 500 bar

  • Gas type and quantity: Hydrogen, 50 kg

  • Assembly dimensions: 2,130 × 1,570 × 1,710 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 70 × 70 L

  • Water volume: 4,900 L

  • Working pressure: 555 bar

  • Gas type and quantity: Hydrogen, 177 kg

  • Assembly dimensions: 2,174 × 2,991 × 2,438 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 80 × 75 L

  • Water volume: 6,000 L

  • Working pressure: 500 bar

  • Gas type and quantity: Hydrogen, 200 kg

  • Assembly dimensions: 1,444 × 2,200 × 6,058 mm

  • Certification: in compliance with 2014/68/EU (PED)

560 - 1100 bar

Bundle 3 × 35 L

  • Water volume: 105 L

  • Working pressure: 1,000 bar

  • Gas type and quantity: Hydrogen, 6 kg

  • Assembly dimensions: 2,010 × 860 × 615 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 8 × 35 L

  • Water volume: 280 L

  • Working pressure: 1,050 bar

  • Gas type and quantity: Hydrogen, 15.5 kg

  • Assembly dimensions: 2,035 × 1,110 × 830 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 9 × 35 L

  • Water volume: 315 L

  • Working pressure: 1,050 bar

  • Gas type and quantity: Hydrogen, 17.5 kg

  • Assembly dimensions: 615 × 1,330 × 1,900 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 12 × 35 L

  • Water volume: 420 L

  • Working pressure: 1,000 bar

  • Gas type and quantity: Hydrogen, 22 kg

  • Assembly dimensions: 1,950 × 1,000 × 890 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 22 × 35 L

  • Water volume: 770 L

  • Working pressure: 1,100 bar

  • Gas type and quantity: Hydrogen, 43 kg

  • Assembly dimensions: 755 × 2,995 × 2,438 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 24 × 35 L

  • Water volume: 840 L

  • Working pressure: 1,000 bar

  • Gas type and quantity: Hydrogen, 45 kg

  • Assembly dimensions: 1,890 × 1,580 × 1,510 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 30 × 30 L

  • Water volume: 900 L

  • Working pressure: 1,000 bar

  • Gas type and quantity: Hydrogen, 48 kg

  • Assembly dimensions: 1,890 × 1,335 × 1,570 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 36 × 35 L

  • Water volume: 1,260 L

  • Working pressure: 1,000 bar

  • Gas type and quantity: Hydrogen, 68 kg

  • Assembly dimensions: 1,890 × 1,580 × 1,970 mm

  • Certification: in compliance with 2014/68/EU (PED)

Bundle 48 × 35 L

  • Water volume: 1,680 L

  • Working pressure: 1,000 bar

  • Gas type and quantity: Hydrogen, 90 kg

  • Assembly dimensions: 1,890 × 1,580 × 2,438 mm

  • Certification: in compliance with 2014/68/EU (PED)

IMG_7792 kopie.jpg

  • With growing demand for renewable energy, hydrogen plays a key role in sustainable solutions. Our hydrogen storage systems support electrolyzers, enabling clean hydrogen production and seamless integration into hydrogen stations. Whether you need a gas storage facility for large-scale projects or compact storage for mobility solutions, we deliver state-of-the-art technology tailored to customer requirements.

  • By combining storage systems with hydrogen bundles and containers, we enhance the efficiency of hydrogen supply and transportation, ensuring a robust infrastructure for high-pressure hydrogen storage. From industrial use to energy applications, our expertise in hydrogen storage sets the foundation for a cleaner future.

Key Features

1

Steel Frame

Protection against corrosion by galvanizing or coating, ensuring extending lifespan even under harsh conditions.

2

Rubber Parts

Reduce direct contact between the cylinder and the frame. Prevent potential corrosion and minimize vibrations.

3

Special Stainless Steel Piping

Suitable for most industrial gases, professional welding for reliable and safe use.

4

Safe Lifting and Handling

Anchor holes and lifting shackles for accurate and safe transport of bundles; easy handling with forklift.

5

Safety Labeling

A metal label with important safety information permanently affixed to the bundle.

6

Advanced Corrosion Protection

Corrosion is the enemy of durability and efficiency. Vítkovice Cylinders protects cylinders with high-performance epoxy, polyurethane, or acrylic resin coatings.​​
